Q5.

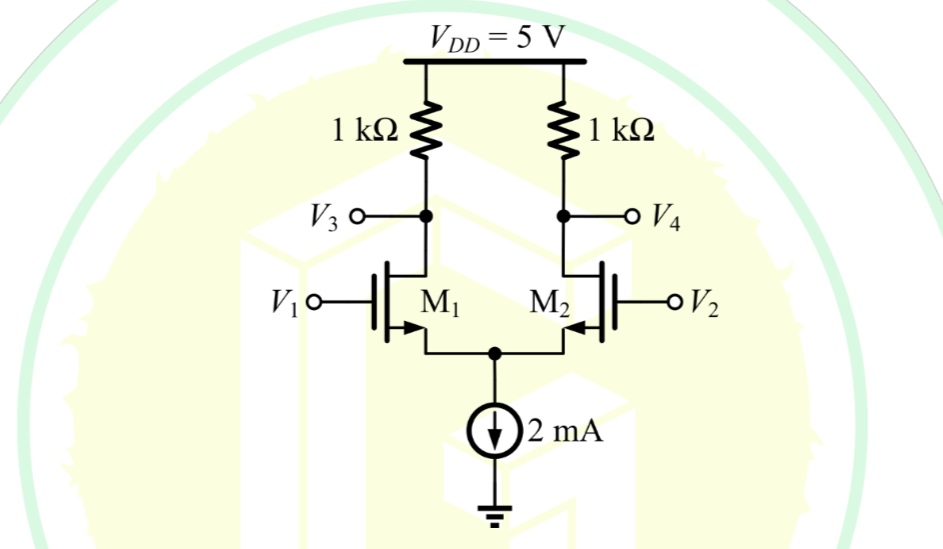

imageThe identical MOSFETs M1M_1 and M2M_2 in the circuit given below are ideal and biased in the saturation region. M1M_1 and M2M_2 have a transconductance gmg_m of 55 mS.

The input signals (in Volts) are: V1=2.5+0.01sinωtV_1 = 2.5 + 0.01 \sin \omega t V2=2.50.01sinωtV_2 = 2.5 - 0.01 \sin \omega t

The output signal V3V_3 (in Volts) is ________.

[image needed to be inserted here]

A
3+0.05sinωt3 + 0.05 \sin \omega t
B
30.1sinωt3 - 0.1 \sin \omega t
C
4+0.1sinωt4 + 0.1 \sin \omega t
D
40.05sinωt4 - 0.05 \sin \omega t
