Q1.

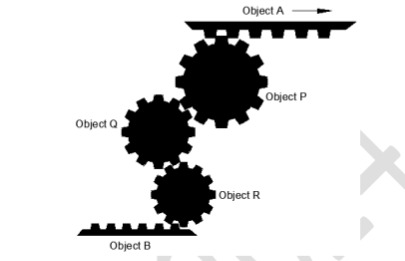

The assembly shown below has three teethed circular objects (Pinions) and two teethed flat objects (Racks), which are perfectly mating with each other. Pinions can only rotate clockwise or anti-clockwise staying at its own center. Racks can translate towards the left (\leftarrow) or the right (\rightarrow) direction.


If the object A (Rack) is translating towards the right (\rightarrow) direction, the correct statement among the following is

A
Object B translates towards the right direction.
B
Object B translates towards the left direction.
C
Object R rotates in the anticlockwise direction.
D
Object Q rotates in the clockwise direction.
